Click here for: CC10 Six Amp Charge Controller/Regulator

Click here for: CC20 Eight Amp Charge Controller/Regulator

Click here for: CC30 Twenty Amp Charge Controller/Regulator

Click here for: CC35 Eight Amp Three Stage PWM Charge Regulator with Low Voltage Disconnect (LVD)





CC20

CC20 Eight Amp Charge Controller/Regulator Download User's Manual PDF



Specifications

Input Charge Voltage:
9.5 to 21 VDC (Unloaded), 8 amps max.

Battery Voltage/Current Drain:
12 VDC nominal, 0.012 amps typical average current drain.

Operating temperature:
0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit).

Size:
100 x 60 x 30 mm (4 x 2.4 x 1.2 inch)

Alarms:
Built-in overvoltage LED. Can be connected to optional External 105 dB Loud Alarm (LA-20).

Trip Points:
Lower and Upper trip points are both independently adjustable. Lower: 11.5 to 14.5 VDC, Upper: 13.5 to 16.5 VDC (factory set at 13.1 and 14.4 VDC). Handles wet, gell and NiCad batteries.

Trip Point Stability, 0 to 50 deg C:
Temperature compensated to an accuracy of better than +/-0.05 VDC.

CC20 Charge Controller/Regulator

The CC-20 Automatic Charge Controller senses battery voltage and connects/disconnects your charging source (solar panels, dumb charger) depending on the battery voltage. The CC-20 enables you to leave your charging source connected permanently without fear of damaging overcharges or excess electrolyte loss. You are assured you have a fully charged battery whenever you need it.

Three front panel LEDs show you what the CC-20 is doing at all times: in "Charge" mode, "Float" mode, or if your battery is in an overcharged "High" condition.

The lower and upper trip limits are factory preset at 13.1 and 14.4 VDC but can easily be adjusted from 11.5 to 14.5 VDC (low limits) and 13.5 to 16.5 VDC (high limits) thereby covering wet, gell and Ni-Cd batteries. Accuracy is maintained to +/- 0.05 VDC over the full operating temperature range. The CCA-20 handles up to 8 amps at an efficiency of 99.8% at 8 amps.

The CC20 has built-in user adjustable battery over-voltage detection that activates an alarm LED. The alarm output signal can also be connected to the optional LA-20 External Multi Alarm. The LA-20 has provisions for connecting up to six instruments and provides an amazing 105 dB of volume.


CC20 Connection Diagram


CC20 Charge Controller/Regulator Connection 	Diagram

Home Distributors/Dealers Case Drawing Products Specials Brochure Order Support Contact Us Join Mail List






CC30

CC30 Charge Controller/Regulator Download User's Manual PDF



Specifications

Input Charge Voltage:
9.5 to 21 VDC (Unloaded), 20 amps max.

Battery Voltage/Current Drain:
12 VDC nominal, 0.012 amps typical average current drain.

Operating temperature:
0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit).

Size:
100 x 60 x 30 mm (4 x 2.4 x 1.2 inch)

Alarms:
Built-in overvoltage LED. Can be connected to optional External 105 dB Loud Alarm (LA-20).

Trip Points:
Lower and Upper trip points are both independently adjustable. Lower: 11.5 to 14.5 VDC, Upper: 13.5 to 16.5 VDC (factory set at 13.1 and 14.4 VDC). Handles wet, gell and NiCad batteries.

Trip Point Stability, 0 to 50 deg C:
Temperature compensated to an accuracy of better than +/-0.05 VDC.

CC30 Charge Controller/Regulator

The CC-30 Automatic Charge Controller senses battery voltage and connects/disconnects your charging source (solar panels, dumb charger) depending on the battery voltage. The CC-30 enables you to leave your charging source connected permanently without fear of damaging overcharges or excess electrolyte loss. You are assured you have a fully charged battery whenever you need it.

Three front panel LEDs show you what the CC-30 is doing at all times: in "Charge" mode, "Float" mode, or if your battery is in an overcharged "High" condition.

The lower and upper trip limits are factory preset at 13.1 and 14.4 VDC but can easily be adjusted from 11.5 to 14.5 VDC (low limits) and 13.5 to 16.5 VDC (high limits) thereby covering wet, gell and Ni-Cd batteries. Accuracy is maintained to +/- 0.05 VDC over the full operating temperature range. The CCA-30 handles up to 20 amps at an efficiency of 99.9% at 20 amps.

The CC30 has built-in user adjustable battery over-voltage detection that activates an alarm LED. The alarm output signal can also be connected to the optional LA-20 External Multi Alarm. The LA-20 has provisions for connecting up to six instruments and provides an amazing 105 dB of volume.

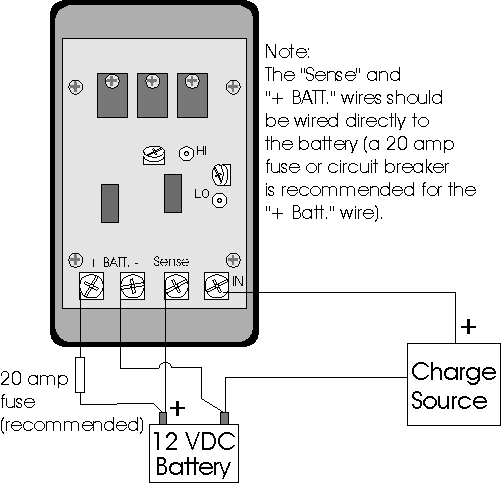

CC30 Connection Diagram


CC30 Charge Controller/Regulator 			Connection Diagram
Home Distributors/Dealers Case Drawing Products Specials Brochure Order Support Contact Us Join Mail List




CC35
PWM Charge Controller
With LVD

CC35 Eight Amp Smart Charge Controller/Regulator With LVD Download User's Manual PDF



Specifications

Input Charge Voltage:
7.5 to 30 VDC (Unloaded), 8 amps max.

Battery Voltage/Current Drain:
12 VDC nominal, 0.012 amps typical average current drain.

Operating temperature:
0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit).

Size:
100 x 60 x 30 mm (4 x 2.4 x 1.2 inch)

Function Indicators:
Built-in PWM Charge LED and Low Voltage Disconnect (LVD) LED.

Set Voltages:
Absorption Voltage - 14.5 VDC for 30 minutes
PWM Float Regulation Voltage - 13.6 VDC
Absorption Voltage Activation - If battery volts falls below 12.5 VDC
Low Voltage Disconnect - 12.5 VDC (Delayed 1 second)

Trip Point Stability, 0 to 50 deg C:
Better than +/-0.10 VDC.

CC35 Smart Charge Controller/Regulator

The CC35 Automatic Charge Controller is a three step regulator that senses battery voltage and adjusts the regulation to deliver a bulk, absorption and float voltage from your solar panels or dumb battery charger. The CC35 enables you to leave your charging source connected permanently without fear of damaging overcharges or excess electrolyte loss. You are assured you have a fully charged battery whenever you need it.

The CC35 is a true Pulse Width Modulated (PWM) charger that keeps the battery voltage at the prescribed charging voltage irregardless of the load current.

The CC35 bulk charges your battery to 14.5 VDC and keeps it at that absorption voltage for 30 minutes. After 30 minutes the CC35 automatically reduces the charging voltage to 13.6 VDC and maintains that float voltage. If the power demand from the battery exceeds the solar panel supply ability and the battery voltage falls below 12.5 VDC, the CC35 will re-enter the bulk charge mode and recharge the battery to 14.5 VDC before dropping back into float.

A built in Low Voltage Disconnect (LVD) circuit automatically removes the load from your battery if battery voltage falls below 12.5 VDC for more than 1 second. This keeps the battery from going into a deep state of discharge if the charging source is unable to keep up with demand. The built-in time delay prevents the LVD circuit from enabling or disabling on short transients caused by motor start currents, etc.

The CC35 input, output and LVD circuits are short circuit protected

Two front panel LEDs show you what the CC35 is doing at all times: The "Charge" LED reflects the state of the PWM output (brighter for more output, more dim for less output and blinks once per two seconds when no charge is being delivered (battery fully charged).

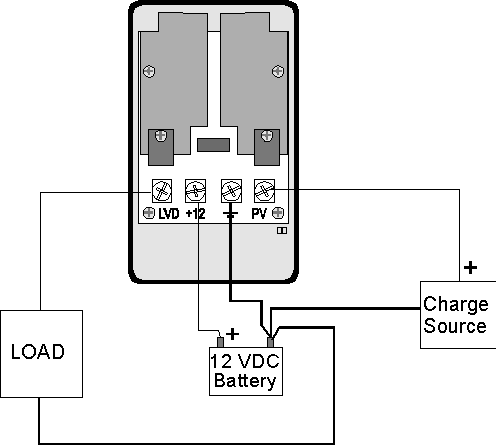

CC35 Connection Diagram


CC35 Charge Controller/Regulator Connection 	Diagram


Home Distributors/Dealers Case Drawing Products Specials Brochure Order Support Contact Us Join Mail List




CC10
6 Amp Low Cost PWM Charge Controller

CC10 Six Amp Low Cost Smart Charge Controller / Regulator Download User's Manual PDF



Specifications

Input Charge Voltage:
7.5 to 42 VDC (Unloaded), 6 amps max.

Battery Voltage/Current Drain:
13.6 or 27.2 VDC nominal, 0.012 amps typical average current drain.

Operating temperature:
0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit).

Size:
100 x 60 x 30 mm (4 x 2.4 x 1.2 inch)

Regulated Output Voltage:
PWM Float Regulation Voltage - 13.6 (or 27.2) VDC

Accuracy, 0 to 50 deg C:
Better than +/-0.10 VDC.

CC10 No Frills, Low Cost Charge Controller / Regulator

The CC10 Automatic Charge Controller is a voltage regulator that senses battery voltage and adjusts the regulation to deliver a fixed 13.6 VDC or 27.2 VDC float voltage (depending on model) from your solar panels or dumb battery charger. The CC10 enables you to leave your charging source connected permanently without fear of damaging overcharges or excess electrolyte loss. You are assured you have a fully charged battery whenever you need it.

The CC10 is a true Pulse Width Modulated (PWM) charger that keeps the battery voltage at the prescribed charging voltage irregardless of the load current.

The CC10 maintains a fixed charging voltage to 13.6 VDC or 27.2 VDC (depending on model) and maintains that float voltage for maximum battery life.

CC10 Connection Diagram


CC10 Charge Controller/Regulator Connection Diagram
