CruzPro DI60 8 and 16 Amp
Electronic Dimmer


Download User's Manual PDF

NEW - Square DI60S DI60 light dimmer and speed controller

NEW - Round DI60R DI60 light dimmer and speed controller



Square DI30S DI30 light dimmer and speed controller

Round DI30R DI30 light dimmer and speed controller

Waterproof front case



Specifications

Operating Voltage:
9.5 - 33.0 VDC

Maximum Current:
8 and 16 amp versions available

Current Drain:
0.018 amps nominal

Controls:
Decrease intensity/speed, ON/OFF, Increase intensity/speed

External Inputs:
Remote ON/OFF or optional light sensor (to automatically turn DI60 on/off when sun sets/rises)

Size:
2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:
2-1/8" (55mm) round hole


NOTE: Derate current if driving halogen lights according to inrush current and insure that wire size will support inrush current without dropping power supply voltage to DI60 below 9.5V minimum.

DI60

The CruzPro DI60 digital dimmer will dim tungsten incandescent lights or control motor speed for DC motors drawing up to 16 amps (8 and 16 amp versions available)

The instant ON/OFF switch remembers the percentage of dimming and enables you to go from OFF to the same level of dimming instantly.

An external input allows you to switch the DI60 ON/OFF from a remote source or use the optional DI31 light sensor to switch the DI60 ON/OFF when the sun sets and rises.

The DI60 draws only 0.017 amps and is designed to be left on continuously.

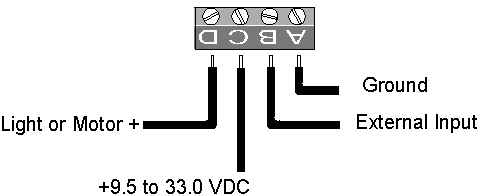

DI60 Connection Diagram


DI60 Connection Diagram
