Digital Engine Hours Gauge
EH55 Low Cost Engine Hours Gauge. Choice of square or round bezel
Waterproof front case
- Operating Voltage:
- 9.5 - 33.0 VDC
- Current Drain:
- 0.035 amps
- 4 digit LCD with red LED backlighting
- Engine Hours (0.0-9999)
- 2.5" dia X 4.1" deep (61mm x 104mm)
- 2-1/8" (55mm) round hole
EH55 The EH55 is a low cost digital Engine Hours gauge which displays total engine hours
from 000.0 hours to 9999 hours.
Red LRED backlighting provides easy night-time viewing and there are only two wires connected to the
ignition line and ground for simple installation.
The EH55 draws only 0.035 amps and works on both 12 and 24V systems.

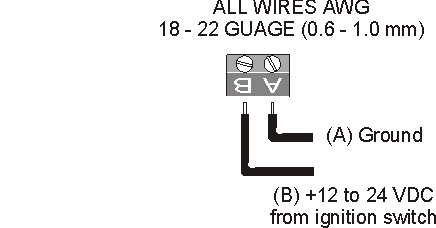

EH55 Connection Diagram
