MaxVu110 User Configurable Multi-Function Instrument

Download user's manual PDF now (2.2M)


Download MaxVu110 Windows software now (4.3M)


Complete with Windows software for Win98, WinXP, Win2K, Vista and Win7, printed user's manual and free RS232 to USB converter. Transducers available separately. Suggested Retail Price (SRP) US$929.08.

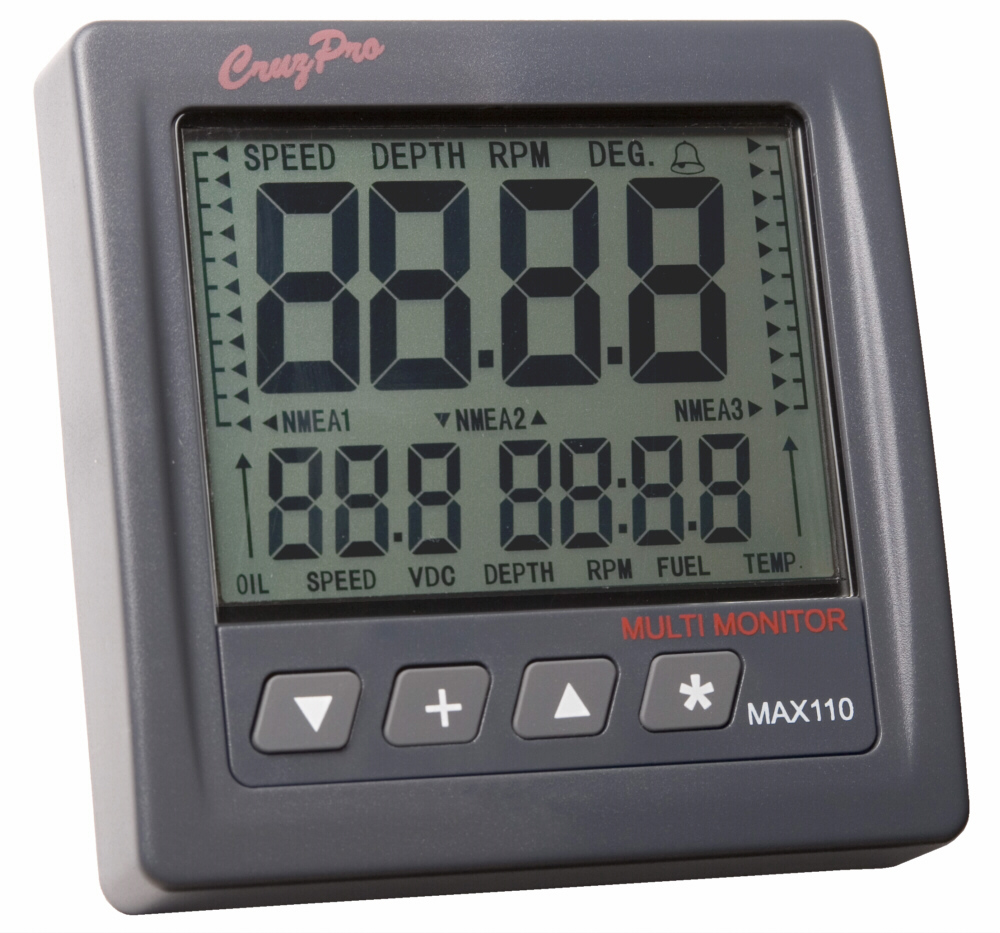

MaxVu110 Configurable Multi-Function Instrument Click for higher quality picture
MaxVu110 Configurable Multi-Function Instrument

CE Certified for Europe


CE Certified and RoHS compliant
Waterproof front case


Specifications

Operating Voltage:
12/24 VDC nominal

Current Drain:
0.095 - 0.15 amps nominal depending on backlight level and number/type of senders

Operating Temperature:
32 to 122 deg F (0 to 50 C)

Display:
3 digital displays and 2 bar charts, 5 levels of backlighting with external backlight on/off control

Built-in circuitry to display:
Battery Bank #1 Volts
Battery Bank #2 Volts
Battery Bank #3 Volts
Boat Speed
Depth (from NMEA sentence)
Eight settable time-of-day alarms
Elapsed Trip Time
Engine Hours
Engine RPM
Engine Maintenance Alarm
Engine Oil Pressure
Engine Temperature #1
Fuel Remaining
NMEA #1 input A
NMEA #1 input B
NMEA #2 input A
NMEA #2 input B
NMEA #3 input A
NMEA #3 input B
NMEA #4 input A
NMEA #4 input B
Race Timer #1
Race Timer #2
Second Tank Level display option
Temperature #2 for Seawater, etc.
Time-of-Day Clock
Total Log
Trip Log
Total Fuel Used
Trip Fuel Used
Trim Angle display option
Temperature #3 Input option

Settable Display Damping for:
Boat Speed
Engine RPM
Fuel
NMEA channels 2A,2B,3A,3B (Depth, etc).
Tank #2 Option
Trim Option

Units of Measure:
Knots, MPH, Km/Hr
Deg F, Deg C
PSI, Bars
Ft, Mtr, Fa (set by NMEA sentence)

Alarms:
Built-in 85 dB audible alarm
Settable Low and High alarms for each data source (Depth, Speed, Battery Voltage, etc.)

Size:
4.3" x 4.3" (110m x 110mm)

Mounting:
2-1/8" (54mm) round hole

MaxVu110

Design your own instrument!

The MaxVu110 multifunction unit is an exciting new concept in instrumentation. The MaxVu110 will simultaneously measure and display five sets of data on three digital displays and two bar graphs. Measure and display data such as RPM, engine temperature, engine oil pressure, fuel and tank levels, battery voltage, etc. You decide what set of five data to view on each “Display Configuration”. As your instrumentation needs change you can quickly select from 16 different display configurations with the push of a button. You can setup some of the Display Configurations for data you need to see while underway and setup other display configurations for use while at anchor or fishing. The idea is that you can easily and quickly configure the MaxVu110 to enable you to see the data you need for each particular situation. Each of the 16 display configurations are highly flexible and any particular set of data can be directed to one of the digital displays and/or one of the two bar graphs.

Unlike some other "dumb" displays, the MaxVu110 does NOT require any external "Black Box", "Brain Box" or "PC" to work. All the electronics to measure and display 34 data sources is contained within the compact MaxVu110. Just connect the sensors and you have a complete set of instrumentation. The multi-core MaxVu110 contains five computers sharing data to provide a fast response to your changing instrumentation needs.

Individual high and low alarm values can be set on each of the five sets of displayed data. When data on any of the five displays falls outside the acceptable range the built-in alarm will sound and that display will blink providing you both a visual and audible warning of a problem.

Display configurations are easily edited to show the data that you want to see from a comprehensive list of data sources. Changes are automatically saved to a nonvolatile memory. Data such as Engine Oil Pressure, Boat Speed, Battery Voltage, etc. is measured by internal circuitry built into the MaxVu110 and does not require an external "brain box". Additionally, the MaxVu110 contains a built-in NMEA data monitor with 4 input lines that can each search for two distinct NMEA sentences for a total of 8 NMEA data sources from list of 3700+ different NMEA sentences. The MaxVu110 will display NMEA data such as Depth, Wind speed/direction or GPS Bearing to Waypoint, Distance to Waypoint information. You can even set high and low alarms on the NMEA data and select display damping for 4 channels of the NMEA data.

The MaxVu110 contains built-in calibration curves for all popular engine temperature senders, oil pressure senders and fuel and tankage senders manufactured by VDO, Teleflex, Faria, Stewart-Warner, GM, and others. Both American and European ranges are recognized and you can even create and use your own sender calibration curves. This means that even odd shaped tanks can be displayed accurately.

All sixteen Display Configurations are factory preset to view the most popular data sources but you can easily edit the Display Configurations using your computer. The Windows software provided with the MaxVu110 enables you to easily edit the Display Configurations or create your own from scratch. Data can be uploaded to the MaxVu110 and/or downloaded from the MaxVu110. Display Configurations can be saved to multiple computer files for later recall or editing. The MaxVu110 can be connected to your PC using either a serial port or a USB port (with the serial to USB converter supplied with the MaxVu110).

The Windows software works on PC's running Win98, Win2K, WinNt, WinXP, Vista and Win7 and the full software package is available on this website for download. You can test-drive the software without the MaxVu110 and see how easy it is to use Click here to download the MaxVu110 Windows software.

Five levels of backlighting can be selected for nighttime viewing. The backlights can be turned ON and OFF remotely and all setup constants are saved in a nonvolatile memory.

The MaxVu110 is many instruments at once in a space-saving 110mm format. You simply select the display configuration that is best suited for what you are doing. With simple, quick installation in a standard 2-1/8” (54mm) round hole, the MaxVu110 is perfect for the boat builder or aftermarket replacement. The MaxVu110 works on both 12V and 24V.



Sample screen #1 of MaxVu110 Windows configuration software:

MaxVu110 Windows Configuration Software



Sample screen #2 showing calibration curve editor:

MaxVu110 Windows Configuration Software





Typical MaxVu110 Wiring Diagram

MaxVu110 Connection Diagram

MaxVu110 Connection Diagram C
