TL55
Digital Tank Level Gauge and Alarm/w Transfer Pump control

Download User's Manual PDF

NEW - Square TL55S TL55 Digital Tank Level Gauge and Alarm

Round TL55R TL55 Digital Tank Level Gauge and Alarm

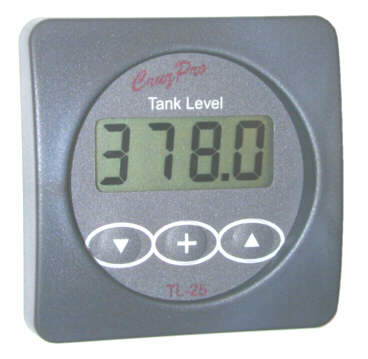

Square TL25S TL25 Digital Tank Level Gauge and Alarm

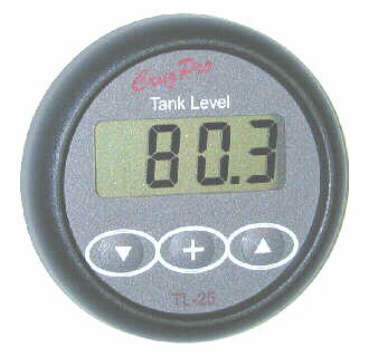

Round TL25R TL25 Digital Tank Level Gauge and Alarm

CE Certified for Europe

CE Certified

Waterproof front case

Specifications

Operating Voltage:
9.5 - 33.0 VDC

Current Drain:
0.018 amps nominal

Display:
4 digit LCD, 5 levels of backlighting

Data:
Tank level display in Liters or Gallons or as a percentage (0-100%)

External Outputs/Alarms:
Output screw terminal user programmable for choice of:
NMEA 0183 serial
External Alarm Output
Day tank fuel transfer pump control

Inputs:
Tank Level Senders:
All popular American and/or European resisitive type fuel level senders with 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohm (and their reverse) such as GM, VDO, Teleflex, Faria, Centroid, Aerotech, Stewart-Warner, etc. 0 to 5V and 4-20 mA versions are available as a special order item.

Data Output:
NMEA 0183 serial 4800 BAUD ($IIXDR sentence).

Alarms:
Built-in 85 dB audible alarm. Independent settable low and high level alarms.

Fuel Transfer Pump Control:
Programmable lower fuel level limit to turn ON a fuel transfer pump.
Programmable upper fuel level limit to turn OFF the fuel transfer pump.

External Alarm Output:
The NMEA 0183 data output terminal may be programmed as an external alarm output or transfer pump control

Size:
2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:
2-1/8" (55mm) round hole

TL55

The TL55 Digital Tank Level Gauge provides a digital display for tank level. Level can be displayed in liters/gallons or percent (0-100%) up to 999 and as a percentage (0-100%) up to 6500 liters/gallons.

The TL55 has been pre-programmed to work with all known resistive type level senders with 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohm (and their revere) outputs made by VDO, Teleflex, Mercury, GM, Stewart-Warner, Centroid, Aero-Tec and others and works with both American and European style senders (senders available seperately).

0 to 5V and 4-20 mA versions are available as a special order item

Low and High Level alarms can be easily set by the user. When activated, the built-in 85 dB alarm will sound and the display will flash.

One of the screw terminals on the rear of the instrument can be programmed as a NMEA 0183 serial data output line, an external alarm output or as a fuel transfer pump control line to maintain fuel level in a day tank between two programmable low and high limits.

Five levels of backlighting can be selected and all set-up, calibration constants, alarm values and sender characteristics are saved in a non-volatile memory.

All constants and sender characteristics are pre-set during manufacture but you may alter these settings to suit your particular needs. Sender selection can be altered over a wide range using the front-panel switches. All information is automatically saved to non-volatile memory.

With a press of the button you can display liquid levels in Gallons or Litres or as a percentage (0-100%).

The TL55 draws only 0.017 amps and 5 levels of backlight (including OFF) can be selected from the front panel.

The TL55 outputs a regulated 5VDC to the sender so the reading is stable and does not change with raw battery voltage (as standard analog gauges do).

The TL55 outputs tank level on the standard NMEA 0183 serial data line at 4800 BAUD. This ASCII information can be used to log performance, repeat the display information at a at a remote location (see www.cruzpro.com/rp30.html and www.cruzpro.com/rp110.html). If NMEA 0183 serial data is not required, then the output terminal can be programmed as an external alarm output pin or Fuel Transfer Pump control line.



Using the TL55 with capacitive senders such as the Centroid 3-wire 10-180 ohm or 33-240 ohm senders. Detailed instructions on setting up the Centroid capacitive senders to work with electronic tank level gauges such as the CruzPro FU60, TL55, TL60 and F60 Click here



TL55 Connection Diagram


TL55 Connection Diagram





Connecting the CruzPro ER-1 External Relay module to the NMEA 0183/External Alarm Output

Click here to go to ER-1 page
ER-1 External Relay Connection Diagram
