CruzPro UWSD10 3D Ultrasonic Wind Speed/Direction Sensor with NMEA 0183 and RS422 output. US$673.15

Download User's Manual PDF


UWSD10 Wind Speed/Direction Sensor


CE Certified for Europe


CE Certified and RoHS compliant



Specifications

Operating Voltage:
9.5 - 33.0 VDC

Current Drain:
0.040 amps nominal
Low power version available (<5 mA)
30M (98 feet) shielded cable/w connectors

Resolution:
Speed: 0.01 knot
Direction: 1 degree
Air Temperature: 1deg

Range:
Speed: 0.00 - 120.00 knots
Direction: 0-359 degrees
Air Temperature:0-37 deg C

Accuracy:
Speed: 2% @10 Knots
Direction: +/- 2 degrees @ 10 Knots
Temperature: +/- 1 degree C

Sensor:
4 Ultrasonic sensor. 3D measurement not affected by heel angle.

Data Output:
NMEA 0183 Wind Speed/Direction and Air Temperature:$WIMWV,ddd,R/T,sss.s,N,A*CS. $YXXDR,C,tt.t,C*CS

Size:
140 mm (5-1/2) diameter, 260mm (18) long including 150mm (6") mounting pole

Mounting:
Two U clamps or two bolts (not included)


The UWSD10 provides NMEA 0183 output of wind speed, wind direction and air temperature using four ultrasonic sensors configured in a 3 dimensional array. The UWSD10 has no moving parts to wear out.

The UWSD10 calculates wind speed with a resolution of 0.01 knots and works from zero wind speed to 120 knots. Wind direction is output in degrees and air temperature in degrees C.

The UWSD10 draws only .040 amps and is provided with a 30M cable and two waterproof connectors.

The UWSD10L draws only .0045 amps and is provided with a 30M cable and two waterproof connectors.

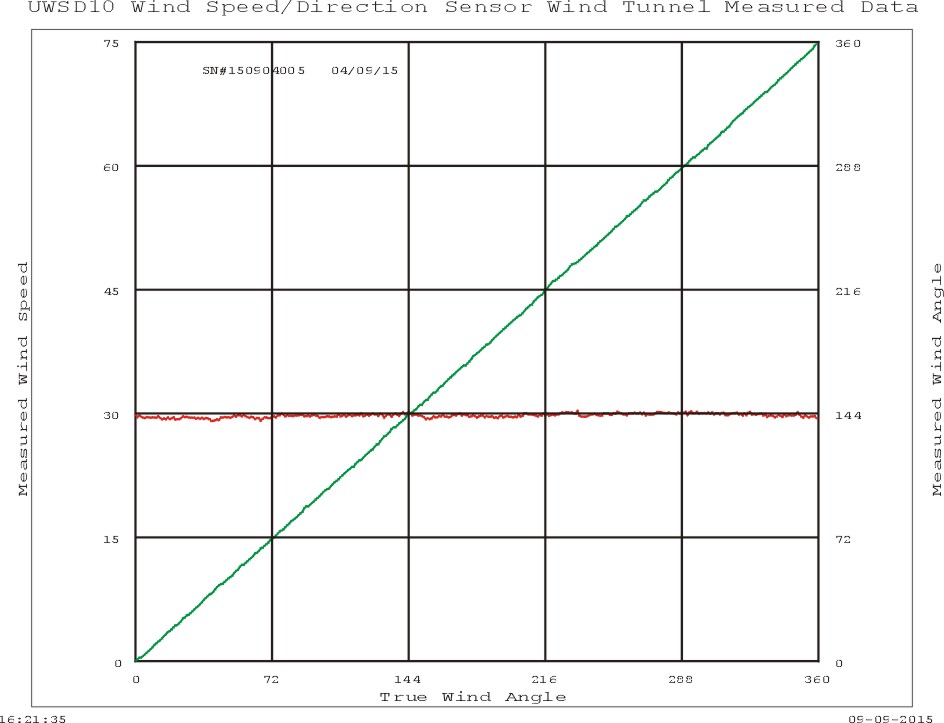

Each UWSD10 wind sensor is individually calibrated in our wind tunnel every 1 degree from 0 to 359 degrees and the errors mapped and compensated to provide the best accuracy possible as shown here:

UWSD10 Wind Tunnel Calibration Report

The UWSD-10 Ultrasonic Wind Speed/Direction sensor is 100% compatible with the WSD-110 wind display (see www.cruzpro.com/wsd110.html).




WSD-110 Connection Diagram


WSD-110 Wiring Diagram




WSD-110 Wind Speed/Direction Display for UWSD10 Wind Sensor available separately, see www.cruzpro.com/wsd110.html


WSD-110 Wind Speed/Direction Display
