Products: Electrical
|
MS60S
MS60R
|
MS60 Multi-Switch Navlight Switching
The MS60 enables you quickly select the correct navigation lights
for sail or power boats. Click for details...
|
|
-
SBS-30 Second Batery Switch/Charger (Voltage Sensitive Relay)
The all solid state SBS-30 Second Battery Switch (voltage sensitive relay) will connect an independent instrument,
radio or windlass battery to your main battery bank whenever the voltage of the main battery is higher than the second battery and disconnect it when the main battery voltage is lower.
The SBS-30 can handle up to 30 amps, has built in thermal protection and the operation is completely automatic and silent. A LED tells you what it's doing. Click for details...
|
CS60S
CS60R
|
-
CS60 Quad Clocked Switch
The CS60 quad clocked switch will switch up four different circuits ON/OFF under control of an accurate digital clock.
Turn each circuit ON and OFF up to 3 times per day or periodically cycle the circuit ON/OFF continuously under clock control. You can also manually control each of the four circuits using the front panel keys. Click for details...
|
|
|
V55S
V55R
|
|
V60S
V60R
|
|
A60S
A60R
|
-
A60 Digital Amps Gauge
Programmable to use 5.0 - 900 amp shunt (available seperately). 0.1 amp resolution to +/- 90.0 amps, 5 levels of backlighting, NMEA 0183 output, works from 9.5 to 33.0 VDC power supply, 0.017 amps nominal draw.
Click for details...
|
|
-
VAH110 Volts/Amp/Amp-Hour Monitor/w Alarms & NMEA (Incl. 500 amp shunt)
An accurate fuel gauge for your battery. At a touch of the button you know exactly what percentage of
your battery charge remains or when to stop charging. Set accurate high and low voltage alarms for each battery
bank individually, low charge alarm, 5 levels of backlighting, NMEA 0183 output, charger control, etc.
NMEA 0183 or external alarm output. Click for details...
|
VAH60S
VAH60R
|
-

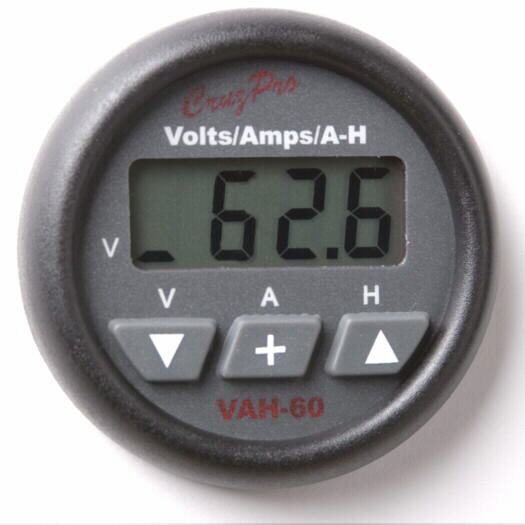

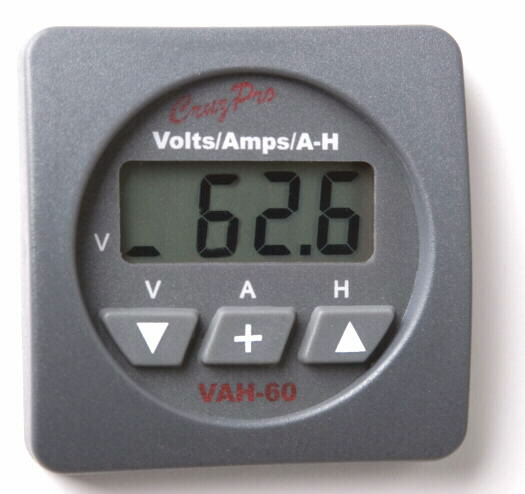

VAH60 Battery Volts/Amps/Amp-Hour Monitor (Incl. 150 amp shunt)
An accurate fuel gauge for your
battery. At a touch of the button you know exactly what percentage of your battery charge remains or when
to stop charging. Set accurate high and low voltage alarms, low charge alarms, 5 levels of backlighting,
NMEA 0183 output, etc. Three models: 3 bank 450 amp version and single bank 150 amp version. All supplied
with appropriate shunts. Click for details...
|
VAH65S
VAH65R
|
-
VAH65 Volts/Amp/Amp-Hour Monitor/w Alarms & NMEA (Incl. 500 amp shunt)
An accurate fuel gauge for your battery. At a touch of the button you know exactly what percentage of
your battery charge remains or when to stop charging. Set accurate high and low voltage alarms for each battery
bank individually, low charge alarm, 5 levels of backlighting, NMEA 0183 output, charger control or external aalrm output, etc.
|
|
-
VAF110 4.3" x 4.3" AC Volts/Amps/Frequency/kW Monitor (Incl. voltage/current transformers)
Accurate digital display of
AC Volts, Amps, Frequency and KW. At a touch of the button you know exactly what your shore power or
generator is doing. Set accurate high and low voltage and high and low frequency alarms, 5 levels of
backlighting, automatic generator cut-off. Covers 90-300 VAC, 0-150 Amps, 40-70 Hz. Supplied with both
voltage and current transformers. Large LCD display and NMEA 0183 data output. Click for details...
|
VAF60S
VAF60R
|
-
VAF60 AC Volts/Amps/Frequency/kW Monitor (Incl. voltage/current transfomers)
Accurate digital display of
AC Volts, Amps, Frequency and KW. At a touch of the button you know exactly what your shore power or
generator is doing. Set accurate high and low voltage and high and low frequency alarms, 5 levels of
backlighting, automatic generator cut-off. Covers 90-300 VAC, 0-150 Amps, 40-70 Hz. Supplied with both
voltage and current transformers. Click for details...
|
|
-
SAR20 Smart Alternator Regulator
A multi-step battery charge
controller provide bulk, absorption, float and equalization charge cycles. Handles both 12 and 24 Volts
and comes complete with battery temperature senser. Program battery bank size, alternator size, battery
chemistry and whether alternator is "hot rated". Click for details...
|
DI60S
DI60R
|
-
DI60 12/24V Light Dimmer
8 amp and 16 amp electronic light dimmer and DC motor speed controller with instant ON/OFF and dimmer memory. Has external input for remote control and optional light sensor inputs (used to turn dimmer ON/OFF when sun sets/rises).
Click for details...
|
CC10
6 Amp Low Cost PWM Charge Controller
|
-
CC10 Six amp charge regulator
Low cost fixed voltage regulator. Sense
battery voltage and regulate your battery charge from solar panels. This regulator enable you to leave your
charging source connected permanently without fear of damaging overcharges assuring you a fully charged battery
whenever you need it.
Click for details...
|
CC20
|
-
CC20 Eight amp charge regulator
User settable solar charge regulator. Sense
battery voltage and regulate your battery charge from solar panels. Bulk charge, float charge and overvoltage
indicator LEDs display operation of unit at all times.
Click for details...
|
CC30
|
-
CC30 Twenty amp charge regulator
User settable solar charge regulator. Sense
battery voltage and regulate your battery charge from solar panels. Bulk charge, float charge and overvoltage
indicator LEDs display operation of unit at all times.
Click for details...
|
CC35
|
-
CC35 Eight amp PWM charge regulator with LVD
This intelligent three step
charge regulator automatically delivers bulk, absorption and float charges. The LVD (Low Voltage Disconnect)
sheds the load if the battery voltage falls below the minimum allowable voltage to prevent damaging low battery
charge that can sulfate your battery.
Click for details...
|
|
Products: Fuel and Tankage
|
FU60S
FU60R
|
-
FU60 Digital Fuel Gauge/Consumption Calculator
Learns tank shape and
sender errors. Very accurate and works with
all popular senders (VDO, Teleflex, Faria, Stewart-Warner, etc.), both American and European types. Handles both
12 and 24 Volts. 5 levels of
backlighting, displays gallons/liters/percent, fuel used and fuel consumption rate (gal or liters/hr).
Built-in settable high & low fuel alarms. NMEA 0183 output. Can also be used to detect fuel theft. 0-5V and 4-20mA versions available by request. Click for details...
|
F60S
F60R
|
-
F60 Low Cost Digital Fuel Gauge/w Alarms
Works with all popular senders
(VDO, Teleflex, Farina, Stewart-Warner, Faria, etc.)both American and European types. Handles both 12 and 24 Volts.
5 levels of backlighting, displays
gallons/liters/percent. Built-in settable high & low fuel alarms. NMEA 0183 output.
Can also be used to detect fuel theft. 0-5V and 4-20mA versions available by request.
Click for details...
|
TL55S
TL55R
|
-
TL55 Digital Tank Level Gauge with Alarms & NMEA 0183
Displays tankage for water, fuel or holding tank. Works with all popular senders (VDO, Teleflex, Faria, Stewart-Warner, etc.) both American and European types.
Handles both 12 and 24 Volts. NMEA 0183 serial data output. Can also be used to detect fuel theft. 0-5V and 4-20mA versions available by request. Click for details...
|
TL60S
TL60R
|
-
TL60 Digital Level Gauge Gauge/Alarm for 3 Tanks
Learns tank shapes and sender errors. Very accurate and works with all popular resistive senders (VDO, Teleflex, Faria, Stewart-Warner, etc.) both American and European types.
Handles both 12 and 24 Volts. 5 levels of backlighting, displays gallons/liters/percent for 3 tanks, independent built-in settable low
level alarms. NMEA 0183 output. Can also be used to detect fuel theft. 0-5V versions available by request. Click for details...
|
